Compact Structure KEMING KLL Model Mortar Spraying Machine Cement Pump Machine Sand Pump

Compact Structure KEMING KLL Model Mortar Spraying Machine Cement Pump Machine Sand Pump

  • Highlight

    Compact Structure Mortar Spraying Machine

    ,

    Cement Pump Mortar Spraying Machine

    ,

    Sand Pump Mortar Spraying Machine

  • Keyword
    KEMING KLL Model Mortar Spraying Machine
  • Conveying Pipe ID.
    25/32 Mm
  • Power Type
    Electric Motor
  • Usage
    Industrial
  • Max. Aggregate Size
    4 Mm
  • Weight
    280kg
  • Max. Delivery Distance
    50/20m
  • Electric Motor Power
    5.5 Kw
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE
  • Model Number
    KLW
  • Minimum Order Quantity
    1
  • Packaging Details
    Wooden Case

Compact Structure KEMING KLL Model Mortar Spraying Machine Cement Pump Machine Sand Pump

Compact Structure KEMING KLL Model Mortar Spraying Machine Cement Pump Machine Sand Pump

Product Description:

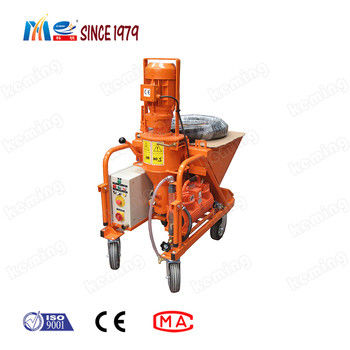

KEMING KLL Model Mortar Spraying Machine

The KLL Plastering Machine can spray ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar. It is a powerful and efficient machine designed for pumping mortar and grout at high pressure. It is widely used in construction projects, such as building, bridge, tunnel, and dam construction, as well as in mining and other industries. With its durable design and easy operation, this pump is a must-have for any construction site.

Features:

  • Product Name: KEMING KLL Model Mortar Spraying Machine
  • Keyword: Plastering Machine
  • Usage: Industrial
  • Guarantee Year: 1
  • Throughput Flow: 75 L/min
  • Inlet Pipe: 25/32 mm


Technical Parameters:

Model

KLL Plastering Machine

Rated Output

20-60L/min

Rated Work Pressure

3MPa

Total Power

8.5kW

Main Electric Motor

5.5kW, 380V60Hz

Rev. of Rotor

380rpm

Rated Air Output

250L/min

Water Pump Rated Output

700L/h

Max. Conveying Dist.

50m

Hopper Capacity

120L

Loading Height

1m

Conveying Hose ID

25/32mm

Air Hose ID

13mm

Overall Dimension

1240×750×1600 mm

Weight

280kg



Applications:

Mortar Grout Pump - KEMING KLW

Brand Name: KEMING
Model Number: KLW
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Wooden Case
Inlet Pipe: 32/38 Mm
Discharge Diameter: 38mm
Flowing Capacity: 10m³/h
Power Type: Electric Motor/diesel Motor
Keyword: Mortar Grout Pump

Introduction

The KEMING KLW Mortar Grout Pump is a high-efficiency screw type grout pump designed for various grouting applications. It is a reliable and powerful machine that can handle different types of grouting materials with ease. With its CE certification and excellent performance, it has gained popularity among construction companies, civil engineering projects, and mining industries.

Application

The Mortar Grout Pump is suitable for a wide range of applications, including:

  • Refractory lining
  • Bridge and tunnel waterproofing
  • Soil stabilization
  • Void filling
  • Cavity filling
  • Concrete repair
  • Chemical grouting
  • Mine tunnel construction
  • And many more
Technical Specifications
Model KLL
Inlet Pipe 25/32 mm
Discharge Diameter 38mm
Power Type Electric Motor
Certification CE
Packaging Details Wooden Case
Conclusion

The KEMING KLL Model Mortar Spraying Machine is a versatile and powerful machine that offers high efficiency, easy operation, and adjustable pressure. With its wide application and two power options.



Packing and Shipping:

Packaging and Shipping for Mortar Grout Pump
Packaging:

Our Mortar Grout Pump is carefully packaged to ensure safe delivery to our customers. The packaging includes:

  • Heavy-duty cardboard box
  • Protective foam padding
  • Wooden or plastic pallet
  • Secure wrapping with plastic or metal strapping
  • Clear labeling with product information and handling instructions
Shipping:

We offer multiple shipping options for our Mortar Grout Pump depending on the customer's preference and location. Some of our shipping methods include:

  • Standard ground shipping
  • Expedited shipping
  • Air freight
  • International shipping

Our team will work with the customer to determine the best shipping method for their specific needs and budget.
Once the product is shipped, we will provide a tracking number for the customer to easily monitor the delivery status of their Mortar Grout Pump.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is KEMING.
  • Q: Do i need technical skills to operate this machine?
    A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: Does this product have CE certification?
  • A: Yes, this product is certified by CE.
  • Q: What should we do if there are some problems with the machine?
    A: The Operate Instruction will help with routine maintenance and common problems.
    Also, you can contact us for technical instruction by email, instant messenger or live video etc.
  • Q: How is this product packaged for shipping?
  • A: This product is packaged in a wooden case for shipping.
