KLW Model High Pressure Thick Slurry Screw Type Mortar Grout Pump With Mixer
-
Highlight
KLW Model Mortar Grout Pump
,High Pressure Grout Pump
,Thick Slurry Screw Grouting Machine
-
NameMortar Pump
-
ModelKLW
-
TypeScrew Type
-
PowerVary With The Models
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO,
-
Model NumberKLW
-
Minimum Order Quantity1 set
-
Price1000-5000 USD
-
Packaging Detailsnude or wooden box packing
-
Delivery Time5-8 days
-
Payment TermsL/C,T/T
-
Supply Ability5 sets per month

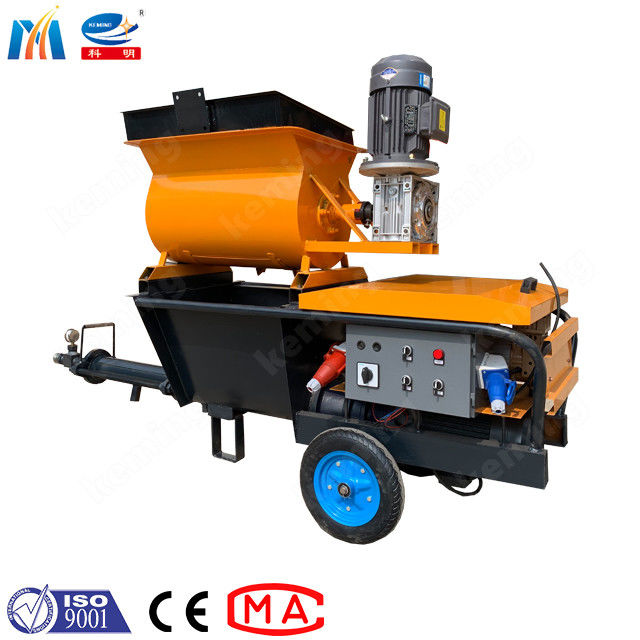

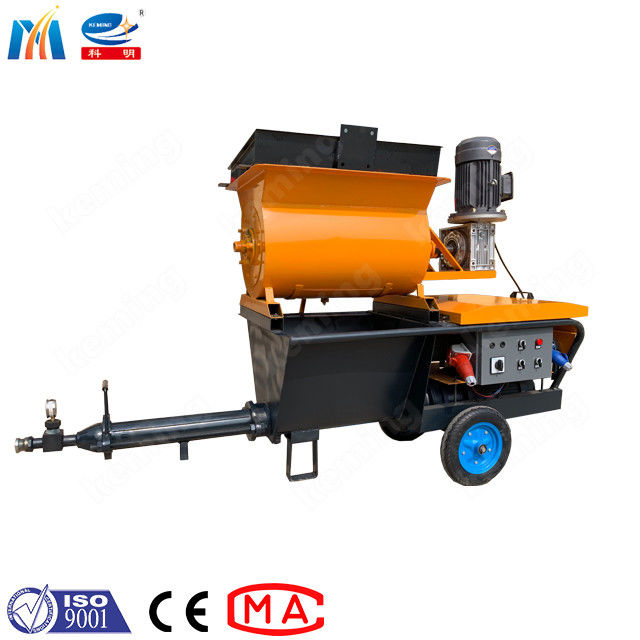

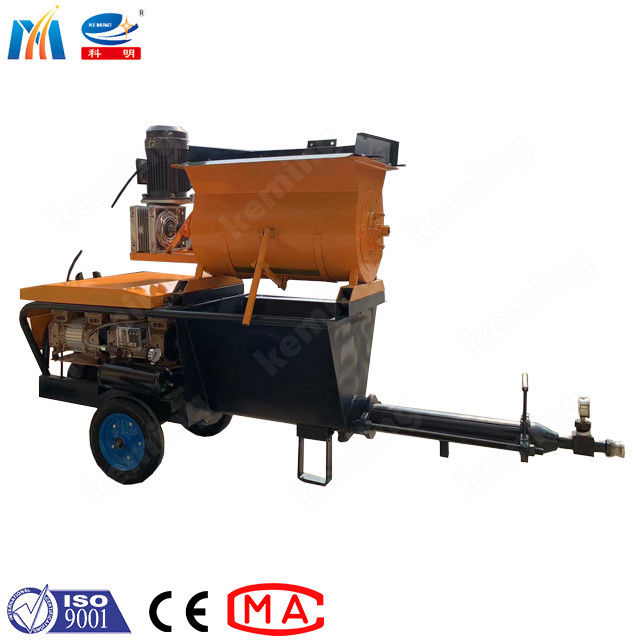

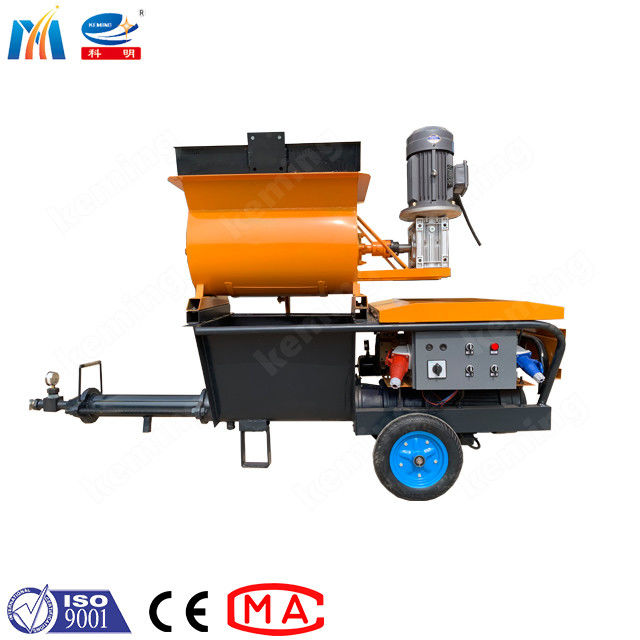

KLW Model High Pressure Thick Slurry Screw Type Mortar Grout Pump With Mixer
Screw Grouting Machine Mortar Grout Pump With Mixer Slurry Grouting Engineering Project
New Design Screw Type Grout Pumps With Mixer For Soft Rock Reinforcement Soil Grouting Engineering
Introduction
KLW2000 and KLW5000 screw grouting pumps with mixing drum integrated models are advanced products developed using European and American screw pressurization technology. Designed for national infrastructure needs, these machines excel in high-pressure, thick slurry, large-flow cement mortar applications including filling, spraying, and protection engineering.
Applications
Ideal for various anchor grouting projects in highways, railway tunnels, urban subways, hydropower stations, and underground caverns. Also suitable for dam construction, slope stabilization, and soft rock reinforcement soil grouting projects.
Specifications
| No. | Parameters | Model | Unit |
|---|---|---|---|
| 1 | Capacity | 2000 | 2500 | 5000 | 7000 | L/h |
| 2 | Pressure | 2～4(adjustable) | 2.5～6(adjustable) | MPa |
| 3 | Motor Power | Grouting: 4 | 7.5 Mixing: 2.2 | 3 |
KW |
| 4 | Sand grain size | ≤4 | mm |
| 5 | Cement ratio | ≥0.30 | / |
| 6 | Conveying distance | Vertical: 20(mortar)～30(cement) | 40(mortar)～80(cement) Horizontal: 60～80 | 80～120 |
m |
| 7 | Hopper | Volume: 145(basic) | 260 | 160(mixing drum) | 180 Feeding height: 800(basic) | 920(basic) | 1120(Integrated model) | 1300(Integrated model) |
L | mm |
| 8 | Outlet thread size/diameter | M45×2/φ32 | M52×2/φ38 | mm |
Company Introduction
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co., Ltd. is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd. As China's pioneer in shotcrete machine development and production, we set national standards for the spraying industry.
Achievements
- 20+ national invention patents and utility model patents
- 10+ certifications from relevant departments
- 8 awards from coal associations and provincial departments
- Recipient of Henan Provincial Science and Technology Progress Award
- "Keming" brand won Henan Province famous trademark in 2014
- Certifications: ISO9001, OHSAS 18001, ISO14001, and CE
Service
Specializing in mechanical and electrical products, chemical technology, mining product development and manufacture, energy conservation and environmental protection technology research, and related consultation services.
Web: www.kemingtech.com
Address: No. 17, Fengyang Street, High-Tech Development Zone, Zhengzhou, Henan, China (Mainland)
Zip: 450001
Address: No. 17, Fengyang Street, High-Tech Development Zone, Zhengzhou, Henan, China (Mainland)
Zip: 450001
Exhibition
Frequently Asked Questions
1. Which pump model should we choose?
To recommend the most suitable model, please share your project requirements and details for professional suggestions.
2. What is the vulnerable part? How many spares should we prepare?
The rubber piston and cylinder sleeve may wear after extended use. We provide free spares and will estimate required quantities based on your project scale.
3. Can we have customized model?
Yes. We offer customized and OEM production according to your specific requirements.
4. Do I need technical skills to operate this machine?
Yes. Please review the Operation Instruction for basic technical skills before use, and contact us for any clarification.
5. What should we do if there are problems with the machine?
The Operation Instruction covers routine maintenance and common issues. For technical support, contact us via email, instant messenger, or live video.
6. What is the lead time?
1 week for sample models, 2-3 weeks for customized models. Mass production timelines vary.
7. How about the package?
Machines are plastic-wrapped and packed in fumigation-free wooden cases with spare parts.
8. How to place an order?
Both online and offline orders accepted. We recommend online orders with Trade Assurance for first-time buyers.
9. How to pay for this order?
Standard payment options: TT (30% deposit, 70% before shipment); L/C at sight (not recommended due to high bank charges); 100% TT in advance (for small orders/spare parts).
