Diesel Mini Concrete Pump Machine with S Tube Valve 6 MPa Pump Pressure and 1800mm Dimension for Construction
-
Highlight
S Tube Valve Diesel Mini Concrete Pump
,6 MPa Pump Pressure Small Concrete Pump
,1800mm Dimension Concrete Pump Machine
-
Matched MachineConcrete Mixer
-
Weight1800
-
Charging Hopper Height1100mm
-
FuctionConcrete Mixing And Pumping
-
Pump Pressure6 MPa
-
Application SiteMines And Projects
-
Power176Kw
-
Diesel ModelCustomize
-
Pump TypeConcrete
-
ColorCustomized
-
Concrete Cylinder Diameter200mm
-
Dimension4200*1450*1800mm
-
ProductDiesel Small Concrete Pump
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO,
-
Model NumberKMB
-
Minimum Order Quantity1 set
-
Price2000-10000 USD
-
Packaging Detailsnude or wooden box packing
-
Delivery Time5-8 days
-
Payment TermsL/C,T/T
-
Supply Ability5 sets per month
Diesel Mini Concrete Pump Machine with S Tube Valve 6 MPa Pump Pressure and 1800mm Dimension for Construction

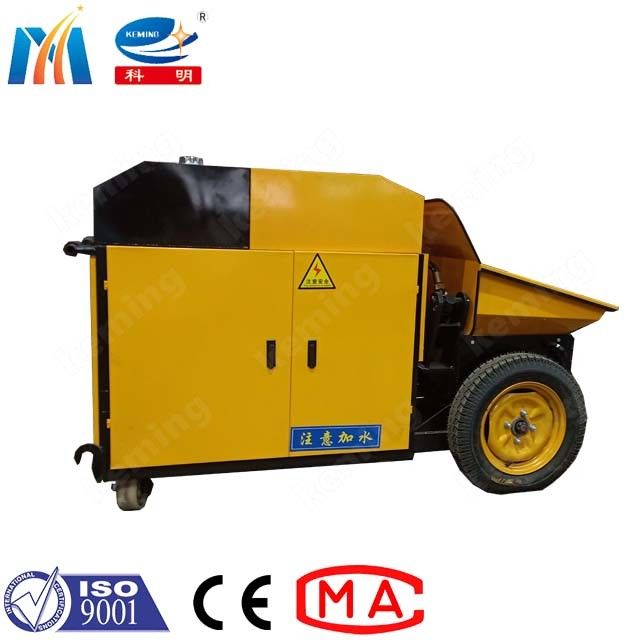

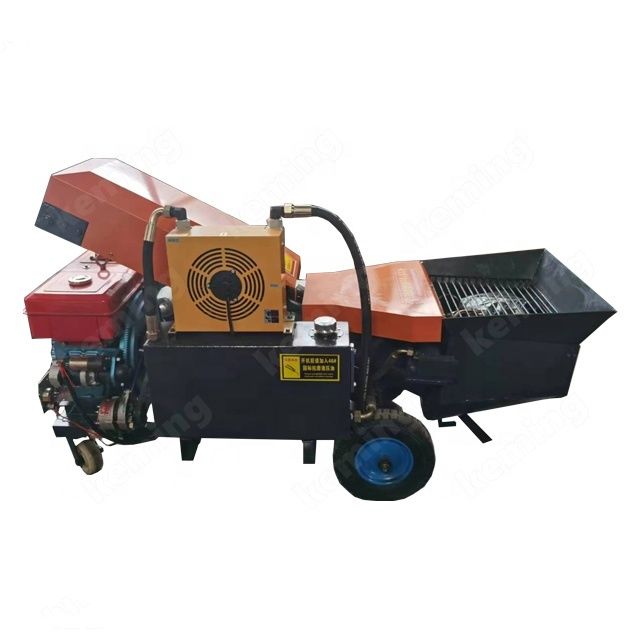

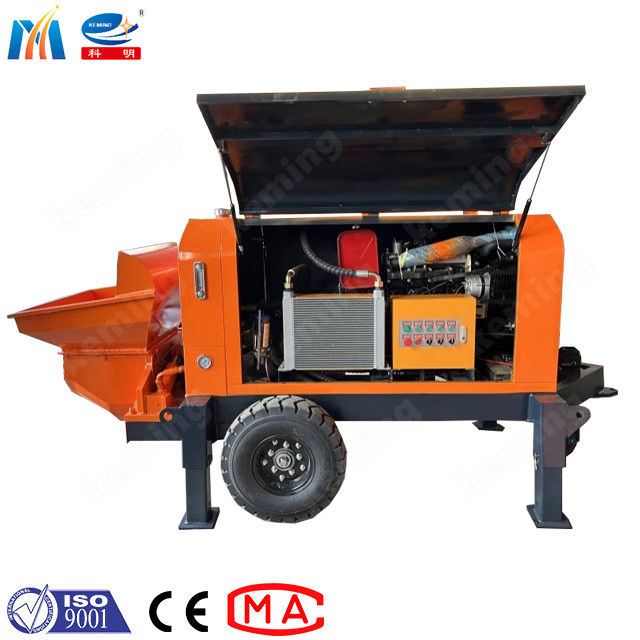

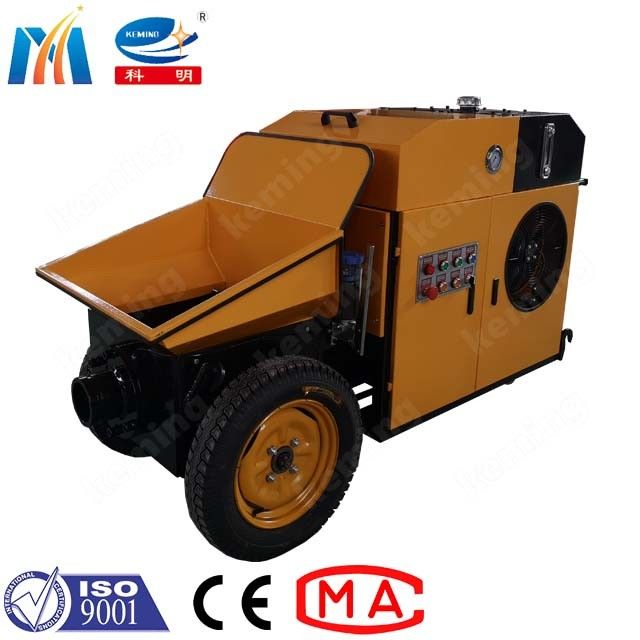

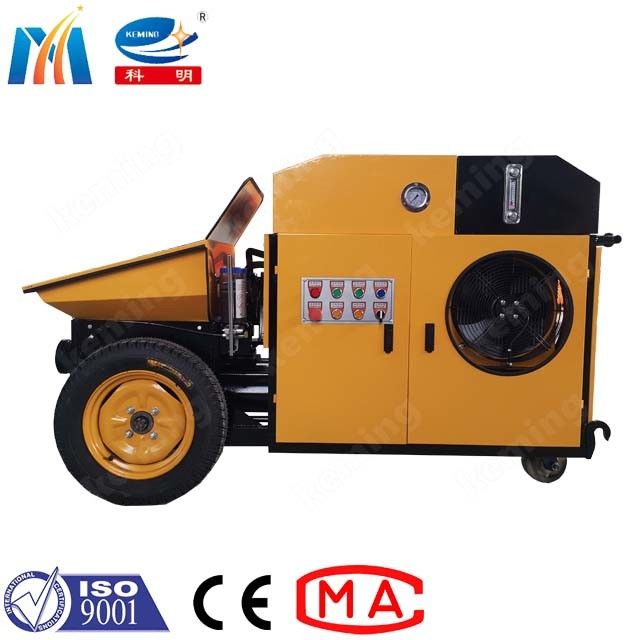

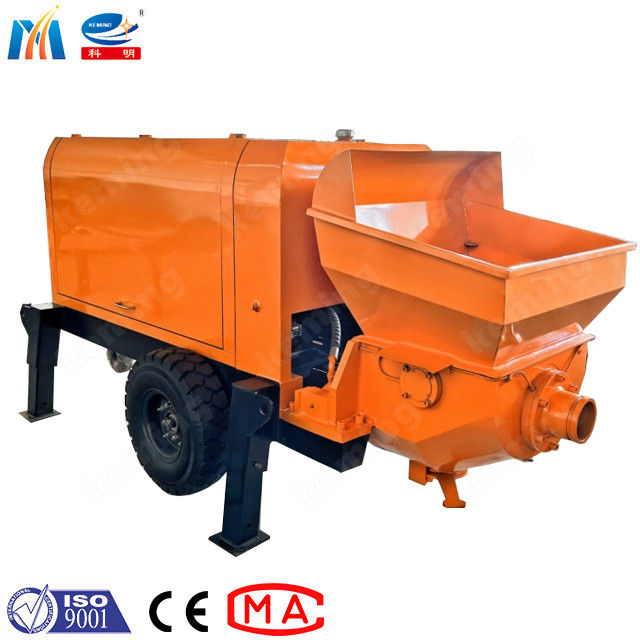

Diesel Mini Concrete Pump Machine
S Tube Valve Wet Concrete Conveying Pump for Construction Column Pouring
Product Overview
This diesel-powered mini concrete pump features an optimized hopper design with low-resistance parabolic S-tube for excellent suction performance. Equipped with imported hydraulic components and a relay-based integrated electronic control system for reliable operation.
Key Features
- Parabolic S-tube design for optimal suction performance
- Imported hydraulic components and pump systems
- Relay-based integrated electronic control system
- Surfaced shaped glasses plate with high hardness cutting ring
- Double-circuit hydraulic system for reduced impact
- Lift guide rollers for enhanced stability
Applications
Widely used for concrete pumping and spraying in hydroelectric works, subway construction, tunnels, culverts, high-rise buildings, coal mines, ports, and various engineering construction projects.
Technical Specifications
| Model | Capacity | Power | Cylinder Dia. | Max Aggregate | Distance |
|---|---|---|---|---|---|
| KMB8 | 8(4~6)m³/h | 15kW | 100mm | 15mm | 50/30m |
| KMB8D | 8(4~6)m³/h | 22kW-Diesel | 100mm | 15mm | 50/30m |
| KMB20 | 20(10~15)m³/h | 22kW | 120mm | 25mm | 120/40m |
| KMB20D | 20(10~15)m³/h | 40kW-Diesel | 120mm | 25mm | 120/40m |
| KMB30 | 30(20~25)m³/h | 37kW | 140mm | 30mm | 150/40m |
| KMB30D | 30(20~25)m³/h | 45kW-Diesel | 140mm | 30mm | 150/40m |
| KMB40 | 35(25~30)m³/h | 45kW | 180mm | 35mm | 200/50m |
| KMB40D | 35(25~30)m³/h | 68kW-Diesel | 180mm | 35mm | 200/50m |
| KMB50 | 50(30~40)m³/h | 55kW | 200mm | 40mm | 250/60m |
| KMB50D | 50(30~40)m³/h | 110kW-Diesel | 200mm | 40mm | 250/60m |
| KMB60 | 60(40~50)m³/h | 90kW | 200mm | 40mm | 300/100m |
| KMB60D | 50(40~50)m³/h | 130kW-Diesel | 200mm | 40mm | 300/100m |
| KMB80 | 50(50~60)m³/h | 110kW | 200mm | 40mm | 500/150m |
| KMB80D | 50(50~60)m³/h | 176kW-Diesel | 200mm | 40mm | 500/150m |
Manufacturer Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co., Ltd.
As a subsidiary of Henan Coal Scientific Research Institute Co., Ltd., Keming was the first company in China to develop and produce shotcrete machines and contributes to national standards for the spraying industry.
Company Achievements
- 20+ national invention patents and utility model patents
- 10+ departmental certifications
- 8 awards from coal associations and provincial departments
- Henan Provincial Science and Technology Progress Award
- "Keming" brand - Henan Province Famous Trademark (2014)
- ISO9001, OHSAS 18001, ISO14001, and CE certifications
Product Range
Shotcrete Machine | Plastering Machine | Concrete Pump | Grouting Pump | Cement Pump | Mortar Pump | Slurry Pump | Hose Pump | Concrete Mixer | Concrete Foaming Machine
Website: www.kemingtech.com
Address: No. 17, Fengyang Street, High-Tech Development Zone, Zhengzhou, Henan, China
Address: No. 17, Fengyang Street, High-Tech Development Zone, Zhengzhou, Henan, China
Frequently Asked Questions
Which pump model should we choose?
To recommend the most suitable model, please provide your project requirements and details for professional recommendations.
What are the vulnerable parts and how many spares should we prepare?
Rubber piston and cylinder sleeve may wear over time. We provide free spare parts and can estimate required quantities based on your project scale.
Can we have customized models?
Yes, customized production and OEM services are available according to your specific requirements.
Do I need technical skills to operate this machine?
Yes, please review the Operation Instruction manual for basic technical skills before operation and contact us for any clarification.
What should we do if there are problems with the machine?
The Operation Instruction covers routine maintenance and common problems. Technical support is available via email, instant messenger, or live video.
What is the lead time?
1 week for sample models, 2-3 weeks for customized models. Mass production timelines vary.
How about the packaging?
Machines are wrapped in plastic film and packed in fumigation-free wooden cases with spare parts.
How to place an order?
Both online and offline orders are accepted. We recommend online orders with Trade Assurance for first-time buyers.
How to pay for orders?
Typically TT (30% deposit, 70% before shipment); L/C at sight (acceptable but not recommended due to high bank charges); 100% TT in advance for small orders and spare parts.
