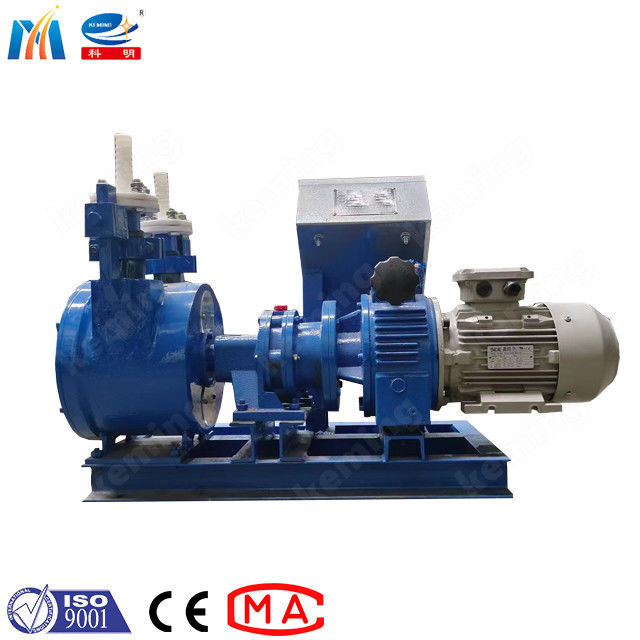

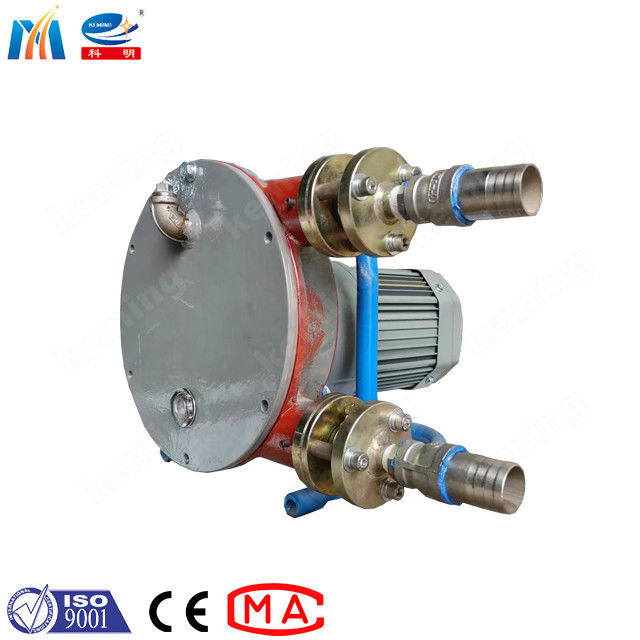

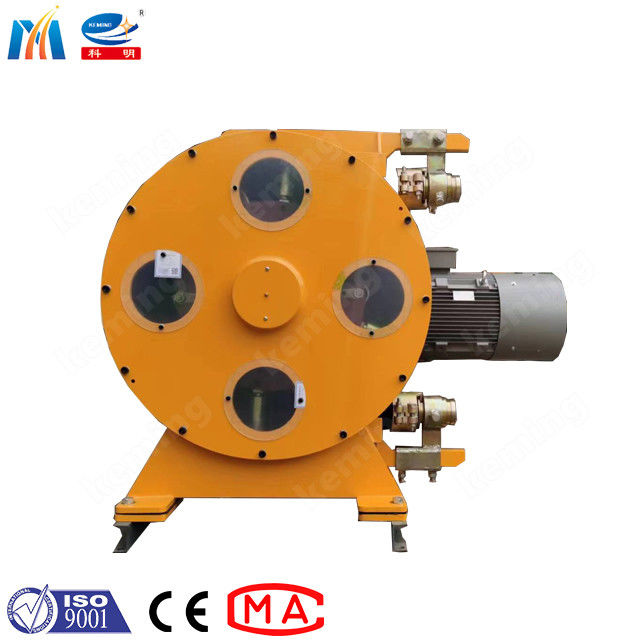

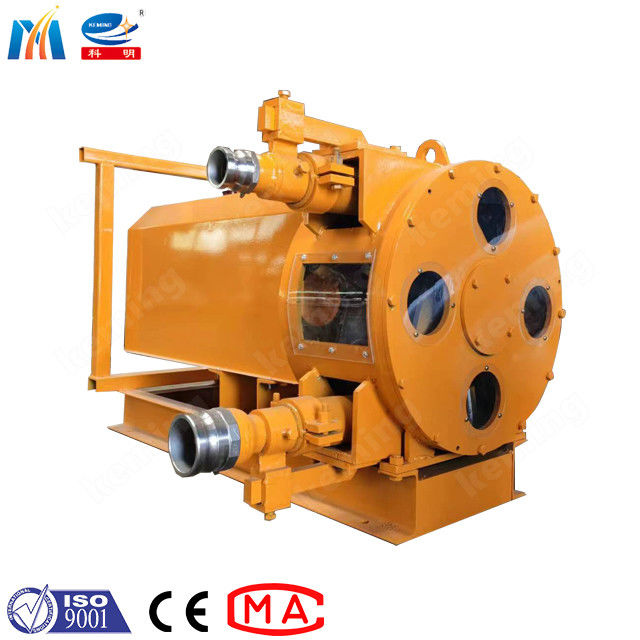

220V/380V Voltage Peristaltic Hose Pump with Different Flow Capacity and High Suction for Liquids Conveying
-
Highlight
220V/380V Voltage Peristaltic Hose Pump
,Different Flow Capacity Hose Pump
,High Suction Squeeze Hose Pump
-
TypePeristaltic Pump
-
Flow Rate0.001-1000 Ml/min
-
OemAccpeted
-
Voltage220V/380V
-
Long Service LifeYes
-
AbilityHigh Suction,self-cleaning Ability
-
Max Pressure6 Bar
-
Pressure1.5Mpa/3.5Mpa
-
Technology AdoptedAdvanced Rolling Technology Adopted
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO,
-
Model Numberkh
-
Minimum Order Quantity1 set
-
Price1000-5000 USD
-
Packaging Detailsnude or wooden box packing
-
Delivery Time5-8 days
-
Payment TermsL/C,T/T
-
Supply Ability25 sets per month
220V/380V Voltage Peristaltic Hose Pump with Different Flow Capacity and High Suction for Liquids Conveying
The hose pump consists of five main components: pump housing, rotor body, reducer, base, and hose. During operation, the rotor body rotates, causing rollers to compress the special rubber hose against the pump housing. This action creates suction to draw in liquid and mechanical force to discharge it, repeating in a continuous cycle.
With its simple yet durable design, the pump's performance depends on hose elasticity, corrosion resistance, motor speed, and tube diameter. Proper material selection and speed control ensure consistent, long-term quantitative delivery.
The KH series hose pump incorporates advanced technology for versatile industrial use, particularly effective for pumping:
- High-viscosity fluids
- Corrosive liquids
- Fluids containing impurities
| Model | Rated Output (m³/h) | Rated Pressure (MPa) | Rated Power (KW) | Max. Aggregate Size (mm) | Max. Suction Distance (m) |
|---|---|---|---|---|---|
| KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
| KH40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH50 | 4.0-8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
| KH65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
| KH90 | 30.0-40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH100 | 40.0-50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH130 | 50.0-70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
| KH150 | 70.0-80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
| KH200 | 100.0-110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co., Ltd. is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd. and China's pioneer in shotcrete machine development.
Key achievements include:
- 20+ national patents
- 10+ departmental certifications
- 8 industry awards
- Henan Provincial Science and Technology Progress Award
- ISO9001, OHSAS 18001, ISO14001, and CE certifications
Services include mechanical/electrical product development, mining equipment manufacturing, and environmental technology research.
