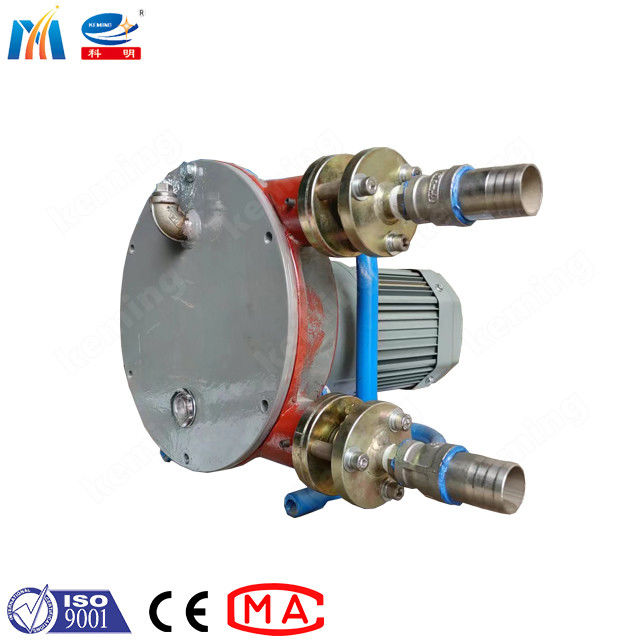

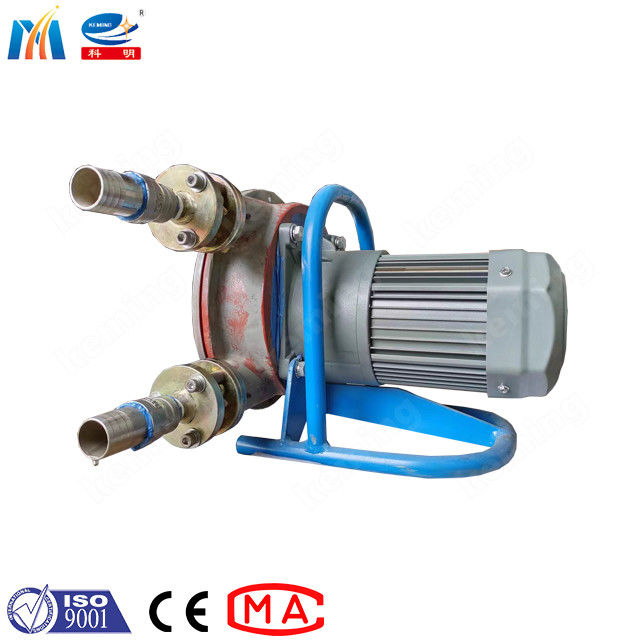

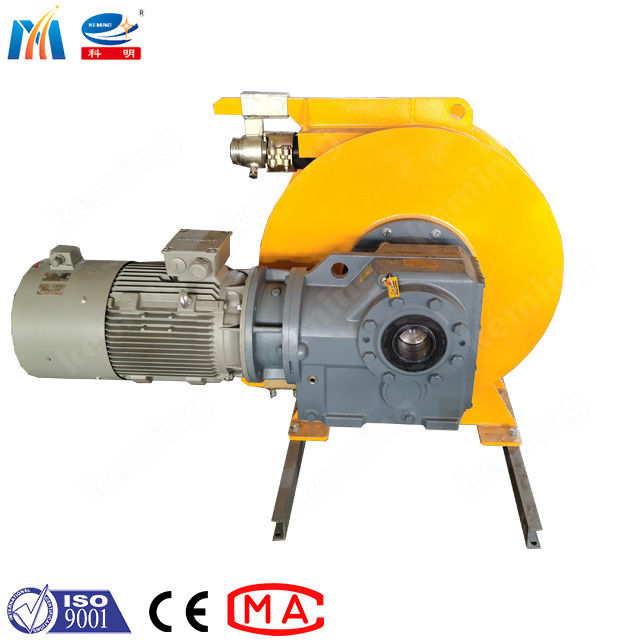

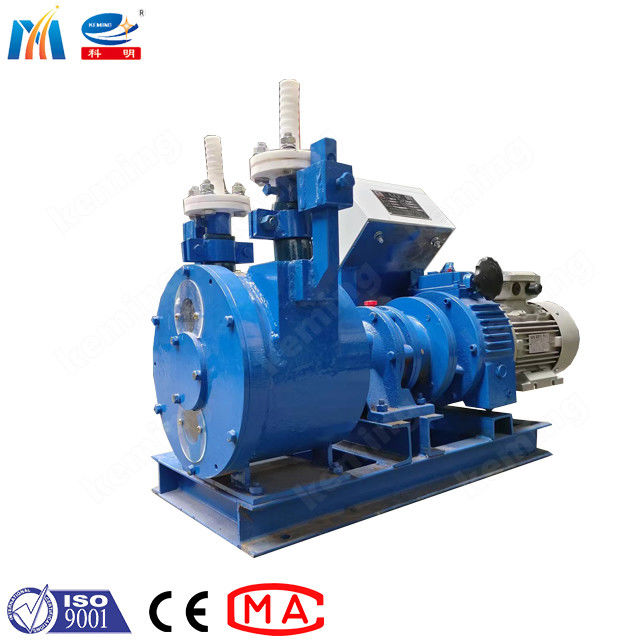

Peristaltic Hose Pump with 11-35KW Power 5-30m Lift and 0.001-1000 ml/min Flow Rate for Liquids Conveying
-
Highlight
11-35KW Power Peristaltic Hose Pump
,5-30m Lift Liquids Conveying Pump
,0.001-1000 ml/min Flow Rate Squeeze Hose Pump
-
TypePeristaltic Pump
-
Lift5-30m
-
Power11-35KW
-
Flow Rate0.001-1000 Ml/min
-
OemAccpeted
-
Voltage220V/380V
-
Long Service LifeYes
-
Dimensions200mm*150mm*100mm
-
AbilityHigh Suction,self-cleaning Ability
-
Max Pressure6 Bar
-
Pressure1.5Mpa/3.5Mpa
-
Tube Size1.6mm-8.0mm
-
Technology AdoptedAdvanced Rolling Technology Adopted
-
ColorSilver
-
The Squeeze HoseID 50 Mm
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO,
-
Model Numberkh
-
Minimum Order Quantity1 set
-
Price1000-5000 USD
-
Packaging Detailsnude or wooden box packing
-
Delivery Time5-8 days
-
Payment TermsL/C,T/T
-
Supply Ability25 sets per month
Peristaltic Hose Pump with 11-35KW Power 5-30m Lift and 0.001-1000 ml/min Flow Rate for Liquids Conveying
Liquids Conveyor Peristaltic Pump Squeeze Hose Liquids Conveying Pump With Gear Type Reducer
Product Introduction
The industrial hose pump series incorporates advanced international technologies to develop a versatile, multi-purpose industrial pump. It completely breaks away from traditional pump impeller and shaft seal designs, offering significant advantages for pumping highly viscous, corrosive, and contaminated media.
Key Applications
- Pumping abrasive slurries (lime slurry, SIC, activated carbon, diatomaceous earth, mineral slurries) with minimal wear
- Flue gas desulfurization in various industries
- Metallurgy, mining, and precious metal smelting applications
- Quantitative chemical delivery with explosion-proof and corrosion-resistant features
- Landfill leachate transportation with dry-run capability
- Waste incineration processes
- Slurry transfer to filter presses
- Semiconductor industry applications
- Printing industry for quantitative ink delivery
- Sewage treatment for flocculant addition
- Fishery waste processing
- Ceramics and automotive industry applications
- Water treatment and disinfection processes
Technical Specifications
| Model | Rated Output (m³/h) | Rated Pressure (MPa) | Rated Power (KW) | Max. Aggregate Size (mm) | Max. Suction Distance (m) |
|---|---|---|---|---|---|
| KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH25 | 0.8~1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH32 | 1.3~1.8 | 1.5 | 2.2 | 3 | 4 |
| KH40 | 2.0~3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH50 | 4.0~8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
| KH65 | 9.0~15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH75 | 15.0~30.0 | 1.0 | 11/15 | 6 | 5 |
| KH90 | 30.0~40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH100 | 40.0~50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH130 | 50.0~70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
| KH150 | 70.0~80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
| KH200 | 100.0~110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
Manufacturer Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co., Ltd.
A subsidiary of Henan Coal Scientific Research Institute Co., Ltd., Keming is the first company in China to develop and produce shotcrete machines and a leader in the spraying industry standards.
Company Achievements
- 20+ national invention patents and utility model patents
- 10+ department certifications
- 8 awards from coal associations and provincial departments
- Henan Provincial Science and Technology Progress Award
- "Keming" brand won Henan Province famous trademark (2014)
- Certifications: ISO9001, OHSAS 18001, ISO14001, CE
Services
Mechanical and electrical products, chemical technology, mining product development and manufacture, energy conservation and environmental protection technology research, and related consultation services.
Website: www.kemingtech.com
Frequently Asked Questions
Q: Which pump model should we choose?
A: To recommend the most suitable model, please provide your requirements and project details for professional suggestions.
Q: What is the vulnerable part? How many spares should we prepare?
A: After long-term operation, the rubber piston and cylinder sleeve may wear. We provide some free spares and can estimate required quantities based on your project scale.
Q: Can we have customized model?
A: Yes. We offer customized production and OEM services according to your requirements.
Q: Do I need technical skills to operate this machine?
A: Yes. Please review the Operation Manual for basic technical skills before use, and contact us for any clarification.
Q: What should we do if there are problems with the machine?
A: The Operation Manual covers routine maintenance and common issues. For technical support, contact us via email, instant messenger, or live video.
Q: What is the lead time?
A: 1 week for sample models, 2-3 weeks for customized models. Mass production timelines vary.
Q: How about the package?
A: Machines are wrapped in plastic film and packed in fumigation-free wooden cases with spare parts.
Q: How to place an order?
A: Both online and offline orders accepted. We recommend online orders with Trade Assurance for first-time buyers.
Q: How to pay for this order?
A: Payment options include: TT (30% deposit, 70% before shipment); L/C at sight (not recommended due to high bank charges); 100% TT in advance (for small orders/spare parts).
