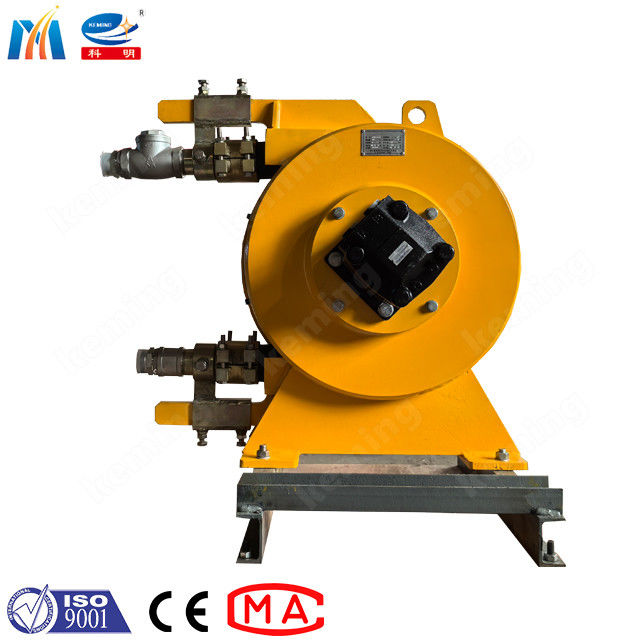

High Pressure 16bar Corrosion Resistant Peristaltic Hose Pump for High Viscosity Handling
-
Highlight
High Pressure 16bar Peristaltic Hose Pump
,Corrosion Resistant Hose Pump
,High Viscosity Handling Squeeze Pump
-
NameHose Pump
-
ModelKH
-
PowerVary With The Model
-
EngineDiesel Or Electrical Engine
-
ColorCustomized
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO,
-
Model Numberkh
-
Minimum Order Quantity1 set
-
Price600-5000 USD
-
Packaging Detailsnude or wooden box packing
-
Delivery Time5-8 days
-
Payment TermsL/C,T/T
-
Supply Ability25 sets per month
High Pressure 16bar Corrosion Resistant Peristaltic Hose Pump for High Viscosity Handling
Multi Functional Hose Pump Squeeze Pumps Frequency Conversion Type Hose Conveying With Different Capacity
KH Hose Pump Diesel Squeeze Pumps Frequency Conversion Type Hose Conveying
The pressure-bearing capacity of the hose pump can now reach a maximum of 16bar. The basic material is natural rubber with a braided reinforcement layer inside, so it can withstand relatively high pressures.
Industrial hose pump is one of the supporting equipment of the foam concrete production line host. The industrial hose pump is a new, multi-functional and multi-purpose industrial pump developed by absorbing foreign technology. It breaks away from the operating mode of traditional pump impellers and shaft seals.
Key Selection Criteria for Hose Pumps
- Flow range: Determine the flow range of a good hose pump. Make sure the pump you choose can meet the flow requirements in your application.
- Pressure requirements: Determine the maximum operating pressure you need. Hose pumps can usually provide pressures up to 16 bar (232psi).
- Pump material: The pump body and hose materials may vary for different applications. It is crucial to choose the right pump material for your application.
- Temperature range: Determine the temperature range of the liquid in your application. Hose pumps can usually handle temperatures ranging from -10°C to 80°C.
- Viscosity: Hose pumps are suitable for handling low to medium viscosity liquids.
- Reliability and maintenance: Consider the reliability and maintenance requirements of the pump. Learn about the life expectancy of the pump, maintenance requirements, and the frequency of replacement of wearing parts.
- Application environment: Consider the environmental conditions of your application, such as indoors or outdoors, explosion-hazardous areas, etc.
- Cost-effectiveness: Compare the prices, performance and functions of pumps of different brands and models.
Technical Specifications
| Model | Rated Output m³/h | Rated pressure MPa | Rated power KW | Max. aggregate size mm | Max. suction dist. m |
|---|---|---|---|---|---|
| KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH25 | 0.8~1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH32 | 1.3~1.8 | 1.5 | 2.2 | 3 | 4 |
| KH40 | 2.0~3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH50 | 4.0~8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
| KH65 | 9.0~15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH75 | 15.0~30.0 | 1.0 | 11/15 | 6 | 5 |
| KH90 | 30.0~40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH100 | 40.0~50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH130 | 50.0~70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
| KH150 | 70.0~80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
| KH200 | 100.0~110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
Manufacturer Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co., Ltd.
It is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd. It is the first company in China to develop and produce shotcrete machines. It is one of the national standards for the development of spraying industry.
Achievements: It has more than 20 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award. In 2014, "Keming" brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Service: mechanical and electrical products, chemical technology, the development and manufacture of mining products, technical research of energy conservation and environment protection technology, and relative consultation service.
Web: www.kemingtech.com

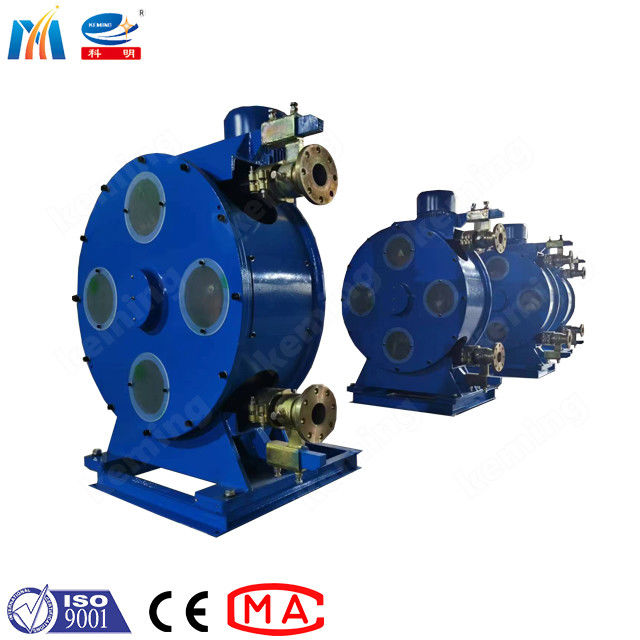

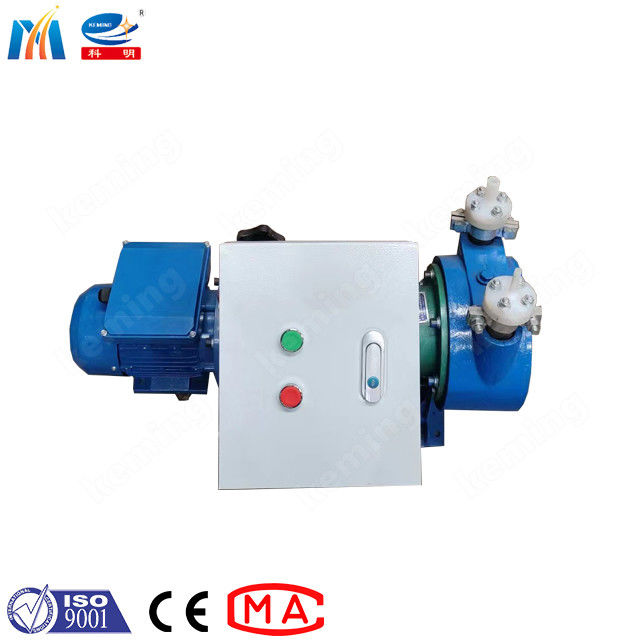

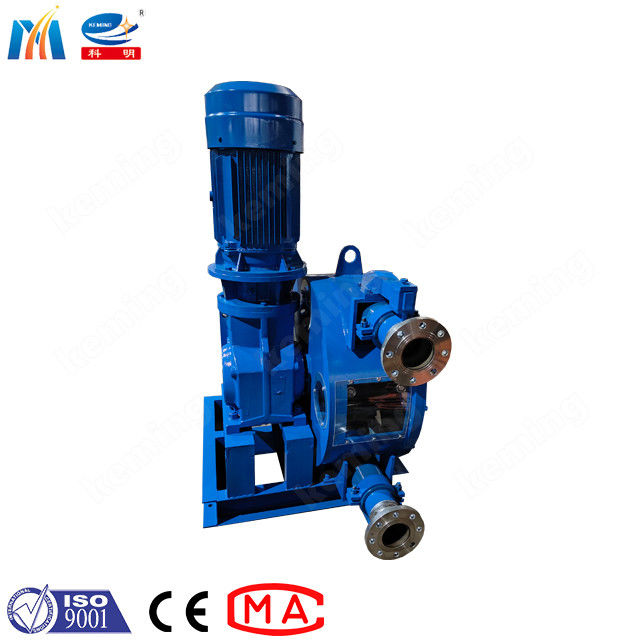

Product Exhibition
Frequently Asked Questions
1. Which pump model should we choose?
To recommend the most suitable model, please let us know your requirements and the details of your project, then will give you the professional suggestions soon.
2. What is the vulnerable part? How many spares should we prepare?
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free. Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Can we have customized model?
Yes. Customized production and OEM production are available according to your actual requirements.
4. Do I need technical skills to operate this machine?
Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. What should we do if there are some problems with the machine?
The Operate Instruction will help with routine maintenance and common problems. Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. What is the lead time?
1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. How about the package?
The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. How to place an order?
Both online order and offline order are acceptable. It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. How to pay for this order?
Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable); 100% TT in advance (especially for small amount and spare parts etc.)
