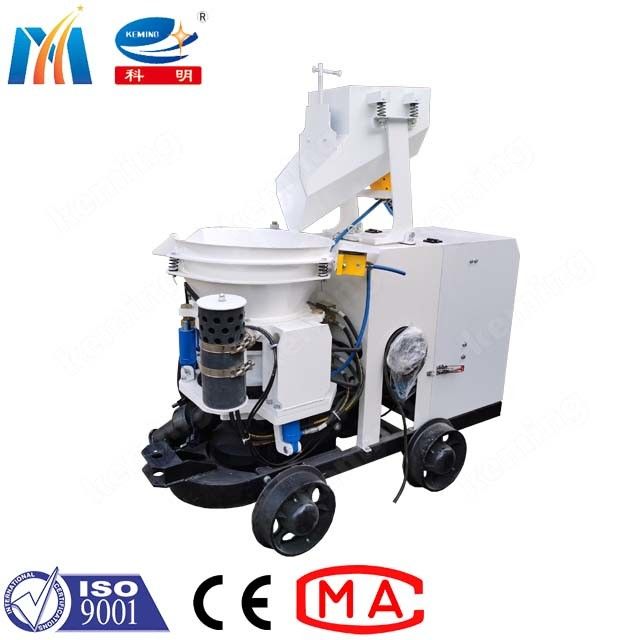

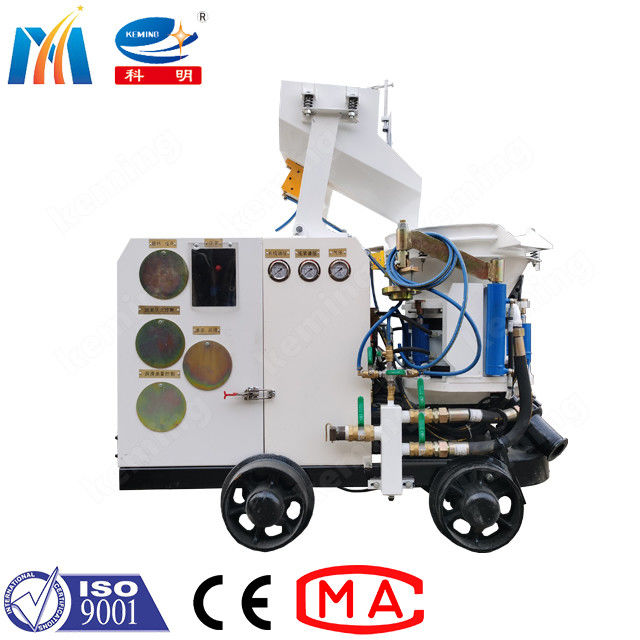

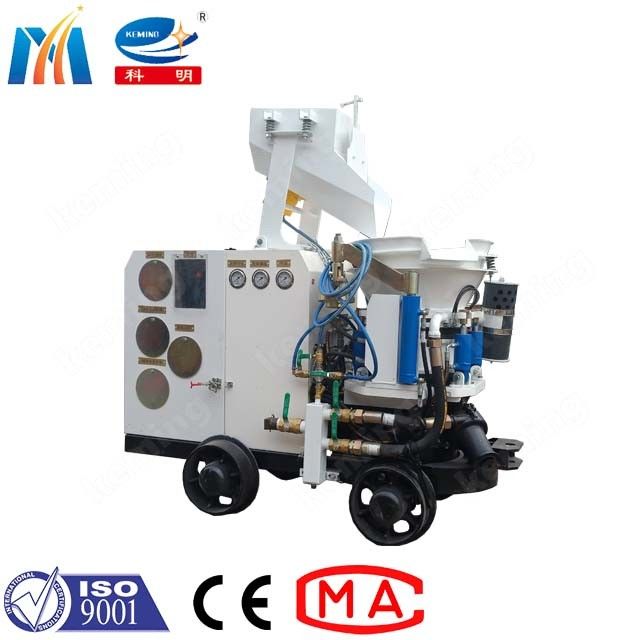

PYC6 Dry Shotcrete Machine 7.5kw Remote Control 500M Spraying
-
Highlight
dry shotcrete machine with remote control
,7.5kw dry shotcrete spraying machine
,500m dry shotcrete machine for spraying
-
NameMini Remote Conveying Shotcrete Machine
-
ModelPYC6
-
TypeDry Type
-
Power7.5 Kw
-
ColorCustomized
-
Spraying Hose Id57 /64mm
-
Output5.5m3/h
-
Air Consumption10m3/min
-
Power5.5-7.5 Kw
-
ConditionNew
-
Dimension1700*1000*1800mm
-
Motor Power7.5kw
-
Way Of WalkingCrawler
-
Water Consumption5L/min
-
Hose Diameter50mm
-
Max. Aggregate Size20mm
-
Working Capacity7m3/h
-
Drive TypeAir Motor
-
TheoryRotory Shotcrete Machine
-
Nozzle Size50mm
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO, MA
-
Model NumberPYC6
-
Minimum Order Quantity1 set
-
Price1000-5000 USD
-
Packaging Detailsnude or wooden box packing
-
Delivery Time5-8 days
-
Payment TermsL/C,T/T
-
Supply Ability5 sets per month
PYC6 Dry Shotcrete Machine 7.5kw Remote Control 500M Spraying
Hydraulic Compression 500M Concrete Spraying Distance Dry And Wet Shotcrete Machine with 7.5 Kw Remote Control
| Attribute | Value |
|---|---|
| Model | PYC6 |
| Type | Dry type |
| Power | 7.5 kw |
| Output | 5.5m³/h |
| Air Consumption | 10m³/min |
| Dimension | 1700×1000×1800mm |
| Max. Aggregate Size | 20mm |
| Working Capacity | 7m³/h |
| Drive Type | Air Motor |
- Mechanical built-in transfer plate for precise concrete spraying amount adjustment
- Automatic hopper seat flipping and rotor body lifting for easy maintenance
- Automatic lubrication system reduces wear and improves pressure air utilization
- Hydraulic pressing system ensures accurate control of pressing force
- Quick-setting agent automatic addition system with precise dosage control
- Compact structure design for convenient transfer operations
| Parameter | Value |
|---|---|
| Capacity | 2-6 m³/h |
| Delivery distance | >500 m |
| Max. aggregate size | ≤20 mm |
| Delivery pipe ID | φ51/57 mm |
| Rated working pressure | 0.5 MPa |
| Air consumption | ≤20 m³/min |
| Feeding height | 1.15 m |
| Rotor speed | 11 r/min |
| Dimensions | 3200×1380×1850 mm |
| Weight | 2480 Kg |
As the first company in China to develop and produce shotcrete machines, we are one of the national standards for the spraying industry.
Achievements: Over 20 national patents, 10+ department certifications, 8 industry awards, and recipient of Henan Provincial Science and Technology Progress Award. ISO9001, OHSAS 18001, ISO14001, and CE certified.
Services: Development and manufacture of mining products, energy conservation and environmental protection technology research, and related consultation services.
Website: www.kemingtech.com
Address: No. 17, Fengyang Street, High-Tech Development Zone, Zhengzhou, Henan, China
A: Please share your project requirements for professional model recommendations.
A: Rubber piston and cylinder sleeve may wear over time. We provide free spare parts and recommend quantities based on your project scale.
A: Yes, we offer customized production and OEM services according to your requirements.
A: Basic technical skills are needed. Please review the Operation Instruction manual and contact us for any clarification.
A: The manual covers routine maintenance. For technical issues, we provide support via email, instant messenger, or live video.
A: 1 week for samples, 2-3 weeks for customized models. Mass production timelines vary.
A: Plastic-wrapped with fumigation-free wooden cases, including spare parts.
A: Online or offline orders accepted. We recommend Trade Assurance for first-time orders.
A: TT (30% deposit, 70% before shipment), L/C at sight (not recommended), or 100% TT in advance for small orders.
Our products are sold all over the world, you can rest assured.
