Highlight
Slurry Grout Pumps
,47 Kg Manual Grout Pumps
,Piston Pump Grout
-
ConditionNew
-
Mixing Tank Capacity300L
-
Max. Horizontal Conveying Distance100 M
-
Mixing Time2-3 Minutes / Batch
-
Grout Pressure1 MPa
-
Electricity PhaseSingle/three
-
Pump Speed1450 Rpm
-
ApplicationGrouting For Foundation, Tunnel, Slope, Etc.
-
Rated Speed50r/min
-
Diametes1400*1700*2200mm
-
Stirring Speed48 R/min
-
Max. Output Pressure10 MPa
-
Capacity0.6-3m3/h
-
Drive TypeElectric Motor Drive
-
ChassisKickstand
-
Place of OriginChina
-
Brand Namekeming
-
CertificationCE, ISO,
-
Model NumberKDS
-
Minimum Order Quantity1 set
-
Price500-900
-
Packaging Detailsnude or wooden box packing, container packing
-
Delivery Time3 days
-
Payment TermsL/C, T/T
-
Supply Ability25 sets per month

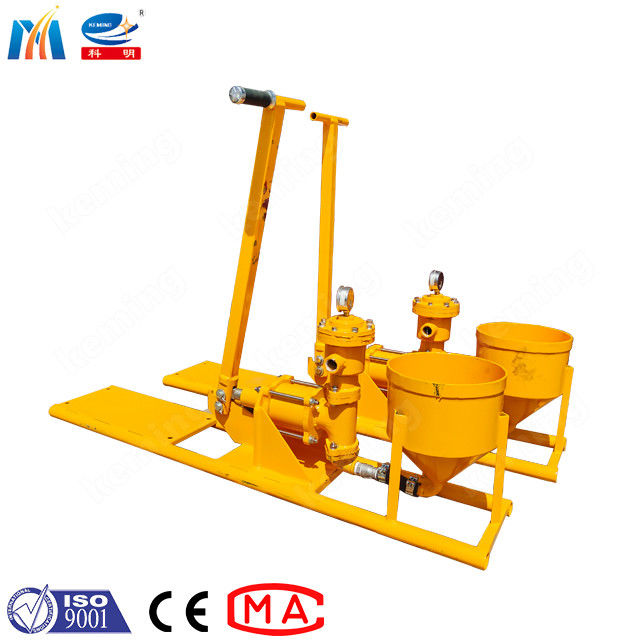

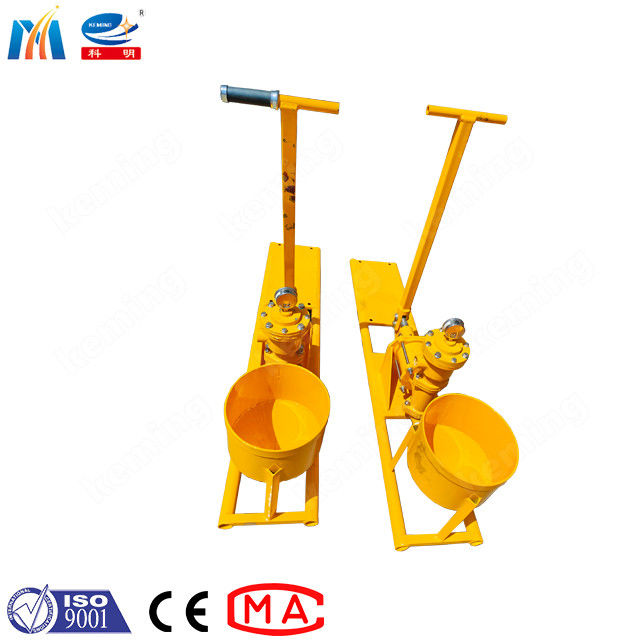

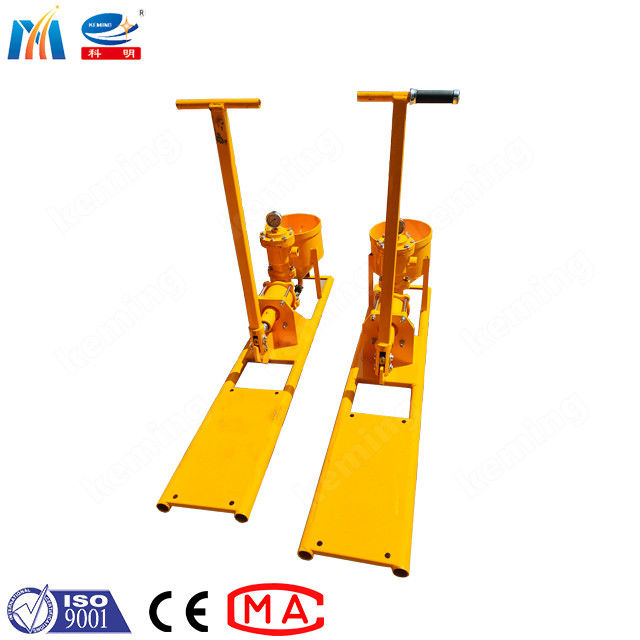

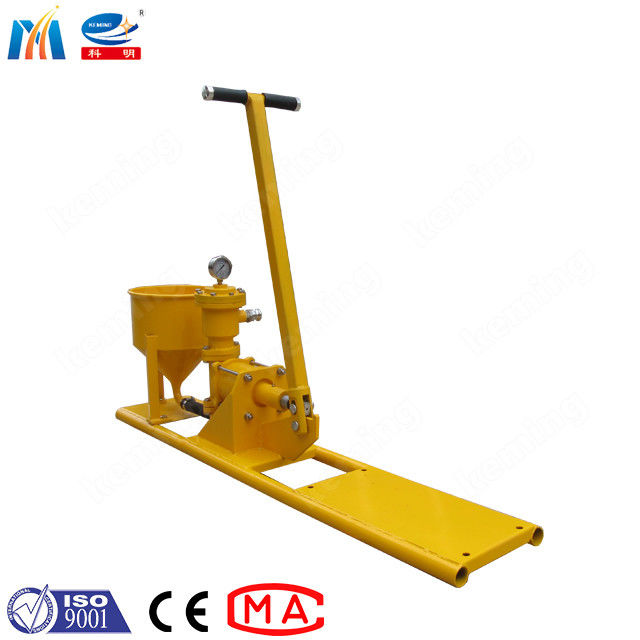

47 Kg Manual Grout Pumps Slurry Grout Pump Piston Pump Grout
Description:
manual grout pump is a hand-operation piston grout pump. It is mainly used in grouting cement slurry or the similar slurry. It has simple operation and controllable flow.
This machine has two types---standard one and special one. The special one is equipped with a hopper.
Application:
Manual grout the cement slurry or similar slurry for the crack repair of the bridge engineering, house construction, etc.
Features:
● Manual grouting, simple operation and controllable flow.
● Single-cylinder work, high vacuum degree, and strong self-suction capability.
● Small size and light weight, convenient for moving in a small space.
● Repair and maintain easily and fewer consumable parts.
Specification:
|
Working Pressure
|
1 MPa
|
|
Rated output
|
0~8L/min
|
|
Piston Dia.
|
110mm
|
|
Piston stroke
|
42mm
|
|
Inlet hose
|
25mm
|
|
Outlet hose
|
25mm
|
|
Power
|
manual
|
|
Overall Dimension (LxWxH)
|
980x290x590mm
|
|
Weight
|
47KGS
|
|
Chassis
|
Skid
|
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
