MA Certificate PS6I Wet Shotcrete Machine Concrete Surface Spraying Machine For Coal Mine

MA Certificate PS6I Wet Shotcrete Machine Concrete Surface Spraying Machine For Coal Mine

INTRODUCTION:

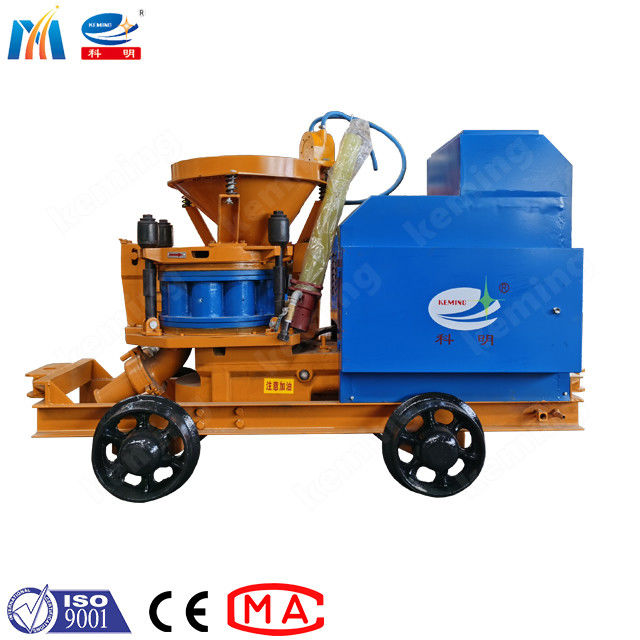

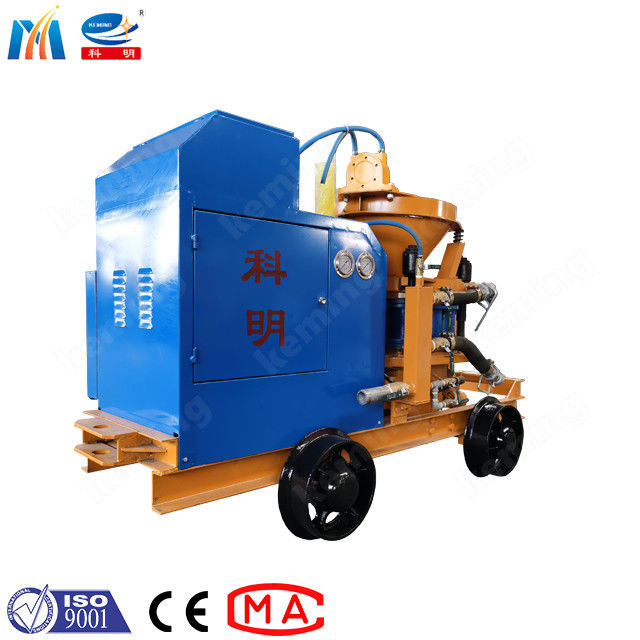

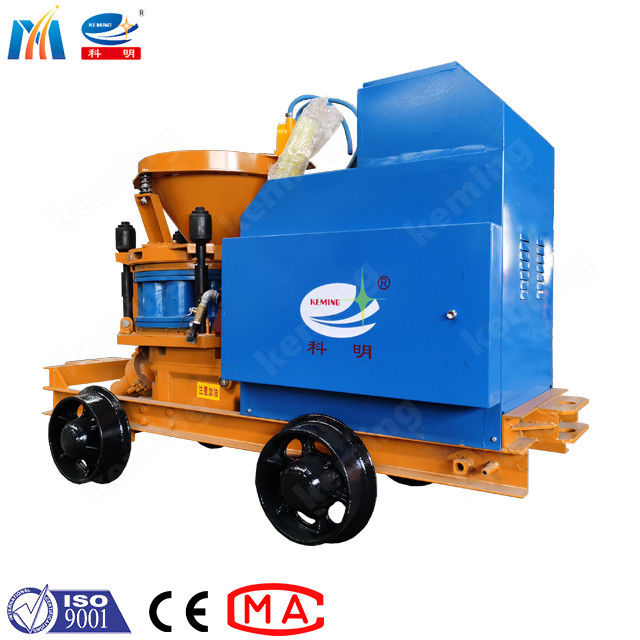

The series PS6I is a sturdy concrete spraying machine for wet spraying process.
This machine is of a simple design, advanced technology, reasonable structure, stable performance, convenient operation and maintenance, and is of a rugged construction to withstand the complex work environment such as tunnels, culverts, subway, hydro-power engineering, underground engineering, mines etc.

The working principle of PS6I
As shown in Figure 1 is the structure and working principle of PS6I. The wet material of concrete and sand is placed into the hopper 1 through the vibrating sieve where it is allowed to freely fall through openings and down into the rubber chamber 6. As the rotor 5 rotates, the pockets which are now loaded with the material, pass under a molded rubber sealing pad. When the material is conveyed to discharge hole, the compressed air is added in the air chamber 13. The material is blown into the rubber discharge elbow 9, where another compressed air is introduced through the cyclone 10. So it is dispersed, accelerated and rotated into the hose. The material is then conveyed by the air through a hose line delivery system to a nozzle, where liquid accelerator is introduced which then mixes with the wet material and air and then is sprayed from the nozzle for the specific application.

SPECIFICATION:



CERTIFICATE:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

COMPANY INTRODUCTION:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace

EXHIBITION:


FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get
full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
