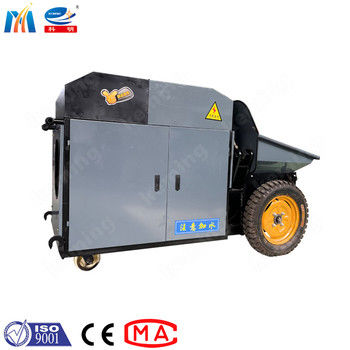

High Efficiency Machine KBS Full Hydraulic Wet Shotcrete Pump For Concrete Pumping

High Efficiency Machine KBS Full Hydraulic Wet Shotcrete Pump For Concrete Pumping

  • Highlight

    High Efficiency Wet Shotcrete Pump

    ,

    Concrete Wet Shotcrete Pump

  • Dimensions
    7.2m*2.2m*2.4m
  • Max Output
    50m3/h
  • Power Supply
    380V/50Hz
  • Max Delivery Height
    150m
  • Pump Type
    Concrete
  • Power Rating
    45kw
  • Pump Cylinder Diameter
    200mm
  • Weight
    4.5t
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE
  • Model Number
    KMB
  • Minimum Order Quantity
    1
  • Packaging Details
    Wooden case

High Efficiency Machine KBS Full Hydraulic Wet Shotcrete Pump For Concrete Pumping

High Efficiency Machine KBS Full Hydraulic Wet Shotcrete Pump for Concrete Pumping

Product Description:

Small Concrete Pump is the fronting technology in international machinery.
Model KBS-8A Full Hydraulic Pumping Wet Shotcrete Machine is used to pump or spray the suitable concrete by conveying pipe to the working surface.
This modern construction equipment is widely applied in hydroelectric works, subway, tunnel, culvert, high building, coal mine, port and other engineering construction that needs concrete or grout pumping and spraying.



Features:

  • Product Name: Small Concrete Pump
  • Power Supply: 380V/50Hz
  • Max Delivery Distance: 500m
  • Dimensions: 7.2m*2.2m*2.4m
  • Max Aggregate Density: 2.5t/m3
  • Pump Cylinder Stroke: 1800mm


Technical Parameters:

Parameter Value
Product Type Small Concrete Pump
Max Pressure 80bar
Max Delivery Distance 500m
Hopper Capacity 0.8m3
Max Output 50m3/h
Max Aggregate Size 40mm
Power Rating 45kw
Material Concrete Cement
Dimensions 7.2m*2.2m*2.4m
Power Supply 380V/50Hz
Max Aggregate Density 2.5t/m3


Applications:

Small concrete pump This modern construction equipment is widely applied for concrete pumping or spraying in
hydroelectric works, subway, tunnel, culvert, high building, coal mine, port and other engineering construction.



Packing and Shipping:

Small Concrete Pump Packaging and Shipping:

  • The Small Concrete Pump is carefully packaged in a cardboard box or wooden crate.
  • The box or crate is enclosed with bubble wrap to prevent any movement or damage during transit.
  • The box or crate is secured with straps and shipped using a reliable carrier.
  • The delivery time depends on the destination and the carrier used.


FAQ:

Q&A

1. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
2. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
