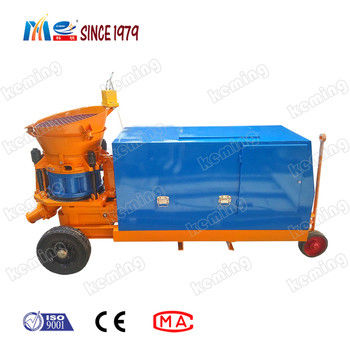

Diesel Shotcrete Machine Concrete Spray Machine For Dry Or Damp Mix Guniting

Diesel Shotcrete Machine Concrete Spray Machine For Dry Or Damp Mix Guniting

  • Highlight

    Diesel Shotcrete Machine

    ,

    Concrete Spray Shotcrete Machine

  • Application
    Mining, Tunnel, Bridge, Building
  • Product Name
    Dry Shotcrete Machine
  • Drive Mode
    Diesel Engine
  • Power Source
    Electric/Diesel/Air
  • Capacity
    7 M3/h
  • Motor Power
    7.5kw
  • Theory
    Rotory Shotcrete Machine
  • Weight
    600kg
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE
  • Model Number
    KPZ
  • Minimum Order Quantity
    1
  • Packaging Details
    Wooden case

Diesel Shotcrete Machine Concrete Spray Machine For Dry Or Damp Mix Guniting

Diesel Shotcrete Machine Concrete Spray Machine for Dry or Damp Mix Guniting

Product Description:

Dry Shotcrete Machine - High Efficiency Spraying Equipment for Construction, Tunnel and Mining

The Dry Shotcrete Machine is a powerful and reliable equipment designed for efficient spraying of dry shotcrete in various construction, tunneling and mining applications. With a one-year warranty and a weight of 600kg, this machine is built to last and deliver exceptional results.

KPZ Series Dry Shotcrete Machine has four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
KPZ-7D Diesel Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, diesel engine etc.
Versatility and Adaptability

The Dry Shotcrete Machine is versatile and can adapt to different types of dry shotcrete materials, making it suitable for a wide range of applications. It can be used for both dry and wet shotcrete, providing flexibility and convenience to the user.

Features:

  • Product Name: Dry Shotcrete Machine
  • Hopper Capacity: 120L
  • Max. Pressure: 2.5MPa
  • Max. Delivery Height: 40m
  • High Efficiency
  • Compact Design
  • Stable Performance
  • Durable Construction
  • Adjustable Flow
  • Suitable for Various Materials
  • Reliable Quality


Technical Parameters:

Specification Value
Application Mining, Tunnel, Bridge, Building
Max. Output Capacity 2-9m3/h
Max. Pressure 2.5MPa
Max. Delivery Distance 200m
Max. Delivery Height 40m
Warranty One Year
Weight 600kg
Motor Power 7.5kw
Product Name Dry Shotcrete Machine
Dimension 1700*1000*1800mm
Keywords Dry Concrete Sprayer, Dry Concrete Spraying Machine, Dry Concrete Spray Gun


Applications:

  • Construction - The Dry Shotcrete Machine is widely used in construction projects for spraying dry shotcrete on walls, slopes, and other structures.
  • Tunneling - In tunneling projects, Its long-distance delivery capability makes it suitable for spraying in long tunnels.
  • Mining - The Dry Shotcrete Machine is also commonly used in mining operations for various applications such as slope stabilization, rock support, and ground consolidation. Its high efficiency and low dust spraying make it a preferred choice for mining projects.
Conclusion

Customization:

KEMING Dry Shotcrete Machine - Customizable Service

At KEMING, we understand that every project is unique and requires specialized equipment. That's why our dry shotcrete machines are highly customizable to meet your specific needs. With KEMING, you can choose from a variety of features and options to create a machine that fits your project perfectly.
