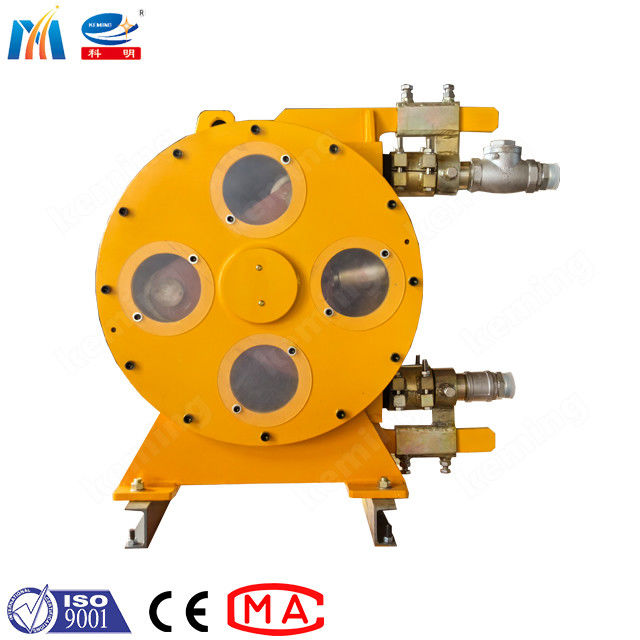

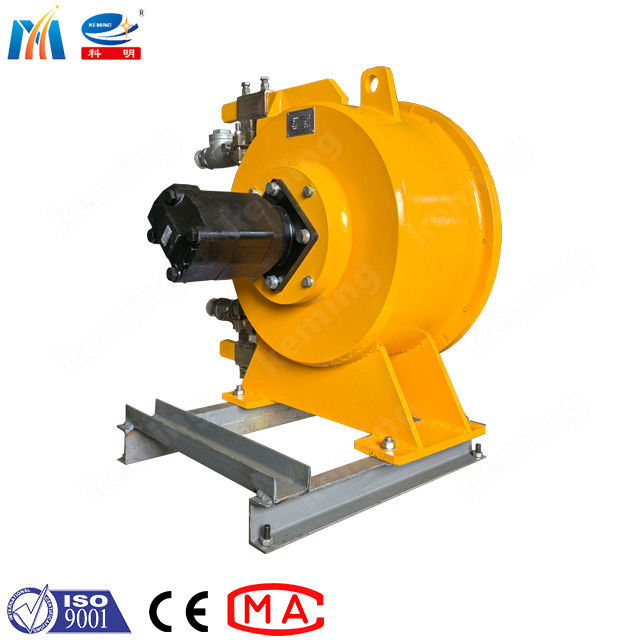

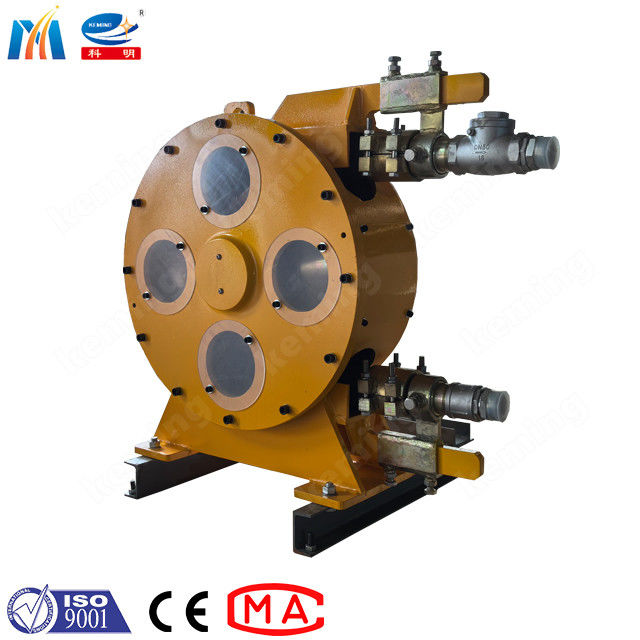

KH Series Peristaltic Hose Pump for Liquids Conveying

KH Peristaltic Pump Mini Squeeze Hose Pumping Machine For Liquids Conveying

Introduction:

Features:

1. No valve operation, no back flow, stable pumping flow, low fault rate.

2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.

3. High vacuum, strong self-suction capacity. 4.Convenient maintenance, less wearable parts (except extruded hose).

1. Pumping abrasive slurries: Typical abrasive materials include lime slurry, SIC, activated carbon, diatomaceous earth, and mineral slurries. Hose pumps experience minimal wear when pumping these materials, unlike other rotary or vane pumps. Furthermore, the lifespan of the hose, the core component of a hose pump, is unrelated to the abrasiveness of the medium.
2. Used in flue gas desulfurization in various industries.
3. Industrial hose pumps are suitable for metallurgy, mining, and precious metal smelting.
4. Hose pumps for quantitative chemical delivery: Leveraging their explosion-proof, corrosion-resistant features and metering element, they are suitable for quantitatively pumping highly corrosive media.
5. Transporting landfill leachate. Because leachate contains various particulate impurities, hose pumps can run dry without wear and tear. They can also operate without media without damage.
6. Waste incineration: Adding activated carbon to chimneys.
7. Slurry transfer to filter presses: Pumps were previously used to transfer slurry to filter presses, but due to their high abrasiveness, hose pumps were eventually used.
8. Used in the semiconductor industry for slurry transfer and biogas desulfurization.
9. Hose pumps are used in the printing industry for quantitative ink delivery and are easy to clean.
10. Used in the sewage treatment industry for adding flocculants, replacing high-maintenance screw pumps that can burn stators when running dry.
11. Waste treatment in fishery processes: Used to pump high-solids, highly abrasive fishery waste, including large amounts of fish heads and bones.
11. Used for clay transfer in the ceramics industry and pickling media transfer in the automotive industry. 12. Water treatment and disinfection industry: Adding Hypo and NaClOHypo will release Cl2 gas, which will cause cavitation when other pumps are in use, thereby causing damage to the pump and affecting the disinfection of tap water.

Specification:

Company introduction:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd.It is the first company in China to develop and produce shotcrete machines. It is one of the national standards for the development of spraying industry.

Achievements: It has more than 20 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “ Keming ” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.

Service: mechanical and electrical products, chemical technology, the development and manufacture of mining products, technical research of energy conservation and environment protection technology, and relative consultation service.

Application:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Main Products:

wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.

Exhibition:

FAQ:

1. Q: Which pump model should we choose?

A: To recommend the most suitable model, please let us know your requirements and the details of your project, then will give you the professional suggestions soon.

2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.

Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.

3. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.

4. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.

5. Q: What should we do if there are some problems with the machine?

A: The Operate Instruction will help with routine maintenance and common problems.

Also, you can contact us for technical instruction by email, instant messenger or live video etc.

6. Q: What is the lead time?

A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

7. Q: How about the package?

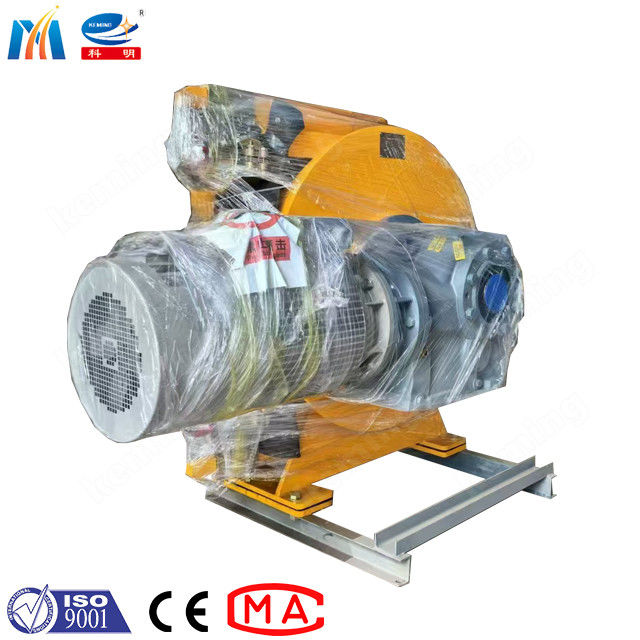

A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.

8. Q: How to place an order?

A: Both online order and offline order are acceptable.

It is suggested to place online order with a Trade Assurance to get full protection for first order.

9. Q :How to pay for this order?

A: Generally, TT, 30% deposit 70% before shipment;

L/C at sight (high bank charge, not suggest, but acceptable);

100% TT in advance (especially for small amount and spare parts etc.)
